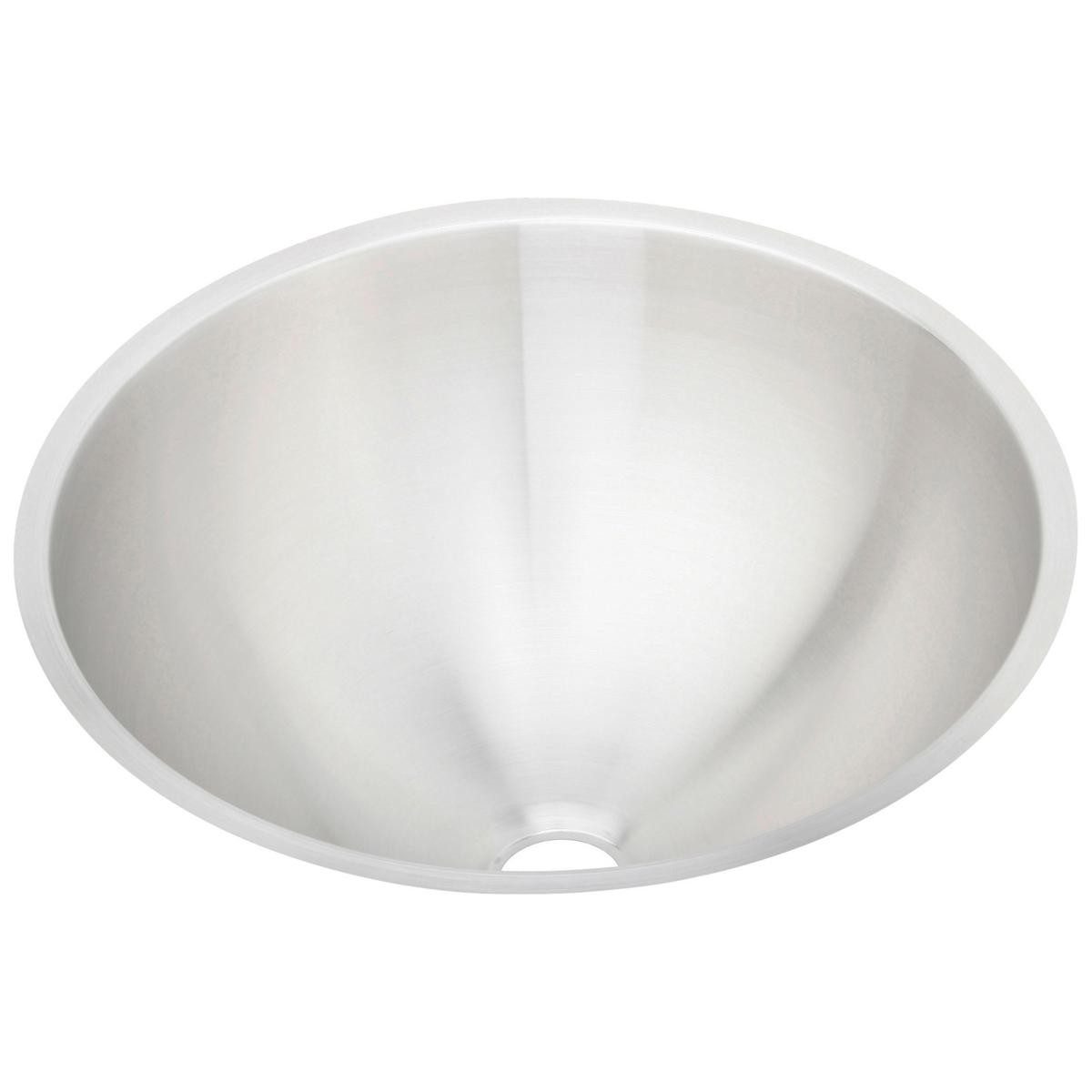

The Elkay ELUH12LV is an Asana Stainless Steel 14-3/8″ x 14-3/8″ x 6″, Single Bowl Undermount Bathroom Sink with Overflow. It features a stainless steel body.

Introduce inspired beauty into the bath with an Elkay Asana bathroom sink. The smooth curves of this collection create a compelling presence without overpowering the senses. Choose from striking finishes to complement your decor, including Lustrous Satin, Hammered Mirror and Copper.

Features

• ADA COMPLIANT: Product is ADA compliant when properly installed.
• REPAIRABLE FINISH: Finish is scratch resistant to heavy-duty use. Deep scratches are repairable. Lustrous grain reflects light evenly for high shine.
• UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop.
• 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
• QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
• LAVATORY SINKS: Add style to the bath with an elegantly designed sink by Elkay.
• DRAIN OPENING: Sink drain opening measures 1-1/2″.
• CABINET SIZE: Minimum cabinet size for this sink is 18″.
• INCLUDES: LKF295 overflow Assembly.

Common Questions

What size cabinet does this need? A minimum 18″ wide base cabinet. Undermount or drop-in? This is an undermount sink — it mounts beneath the countertop for a seamless look and needs a fabricator to cut the counter opening. What does 18-gauge mean? 18 gauge is the thickness of the stainless steel — a lower number is thicker, quieter and more dent-resistant. This model also has bottom only pads for added quiet. Is this ADA compliant? Yes, this model meets ADA accessibility requirements for bowl depth. What is included in the kit? This kit includes: LKF295 overflow Assembly.

Specifications

• Type: Asana Stainless Steel 14-3/8″ x 14-3/8″ x 6″, Single Bowl Undermount Bathroom Sink with Overflow
• Outlet Size: 1-1/2″
• Body Material: Stainless Steel
• Country of Origin: United States
• MPN: ELUH12LV
• Certifications: ASME A112.19.3/CSA B45.4, IAPMO, ADA
• Number of Bowls: 1
• Minimum Cabinet Size (in): 18
• Bowl Dimensions: 12″ x 12″ x 6″
• Drain Location: Center
• Gauge: 18
• Sound Deadening: Bottom only pads
• Template Included: Yes
• Mounting Hardware: Undermount brackets sold separately
• Mount Type: Undermount
• Coating / Finish: Lustrous Satin
• Overall Length (in): 14.375
• Overall Width (in): 14.375
• Overall Height (in): 6.0
• Kit Includes: LKF295 overflow Assembly
• Cutout Template (DXF): https://www.elkayfiles.com/templates/1000000596.dxf
