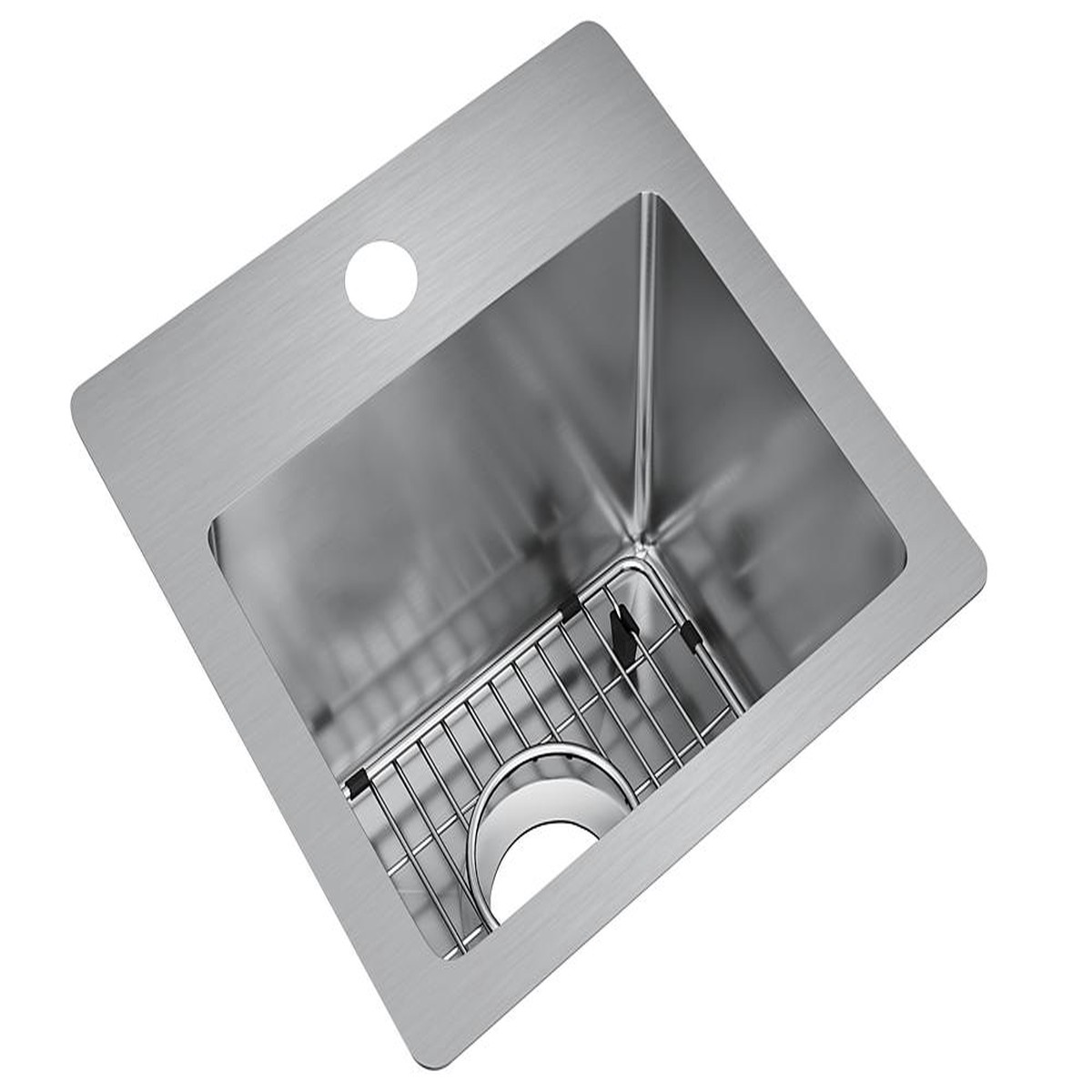

The Elkay ECTSR15159TBG1 is a Crosstown 18 Gauge Stainless Steel 15″ x 15″ x 9″, 1-Hole Single Bowl Dual Mount Bar Sink Kit. It features a stainless steel body.

The Elkay Crosstown collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.

Features

• SLIM RIM: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look.
• 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
• SOUND GUARD: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink.
• TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean.
• EXTRA DEEP BOWL: High-capacity bowl offers more room inside for stacking dishes, filling stockpots, and handling large baking sheets and roasters.
• DRAIN OPENING: Sink drain opening measures 3-1/2″.
• DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows.
• CABINET SIZE: Minimum cabinet size for this sink is 18″.
• KIT INCLUDES: ECTSR15159T sink, CTXBG118 bottom grid; conveniently packaged together to save you time.

Common Questions

What size cabinet does this need? A minimum 18″ wide base cabinet. What does 18-gauge mean? 18 gauge is the thickness of the stainless steel — a lower number is thicker, quieter and more dent-resistant. This model also has full spray sides and bottom with sides and bottom pads for added quiet. Will my faucet fit? Check your existing hole pattern against this sink’s drilling: 1. What is included in the kit? This kit includes: CTXBG118 Bottom Grid.

Specifications

• Type: Crosstown 18 Gauge Stainless Steel 15″ x 15″ x 9″, 1-Hole Single Bowl Dual Mount Bar Sink Kit
• Outlet Size: 3-1/2″
• Body Material: Stainless Steel
• Country of Origin: China
• MPN: ECTSR15159TBG1
• Certifications: ASME A112.19.3/CSA B45.4, IAPMO
• Number of Bowls: 1
• Minimum Cabinet Size (in): 18
• Bowl Dimensions: 12-1/2″ x 9-3/4″ x 9″
• Drain Location: Center
• Gauge: 18
• Sound Deadening: Full spray sides and bottom with Sides and Bottom pads
• Template Included: Yes
• Mounting Hardware: Part # 64090022 included for drop-in installation for countertops thicker than 3/4″ (19mm) up to 1-1/2″ (38.1mm) thick.
• Mount Type: Dual-Mount
• Coating / Finish: Polished Satin
• Faucet Holes: 1
• Overall Length (in): 15.0
• Overall Width (in): 15.0
• Overall Height (in): 9.0
• Kit Includes: CTXBG118 Bottom Grid
• Countertop Cutout: 14-3/8″ x 14-3/8″ (365mm x 365mm) with 1/2″ (12mm) corner radius
• Cutout Template (DXF): https://www.elkayfiles.com/templates/1000001178.dxf
